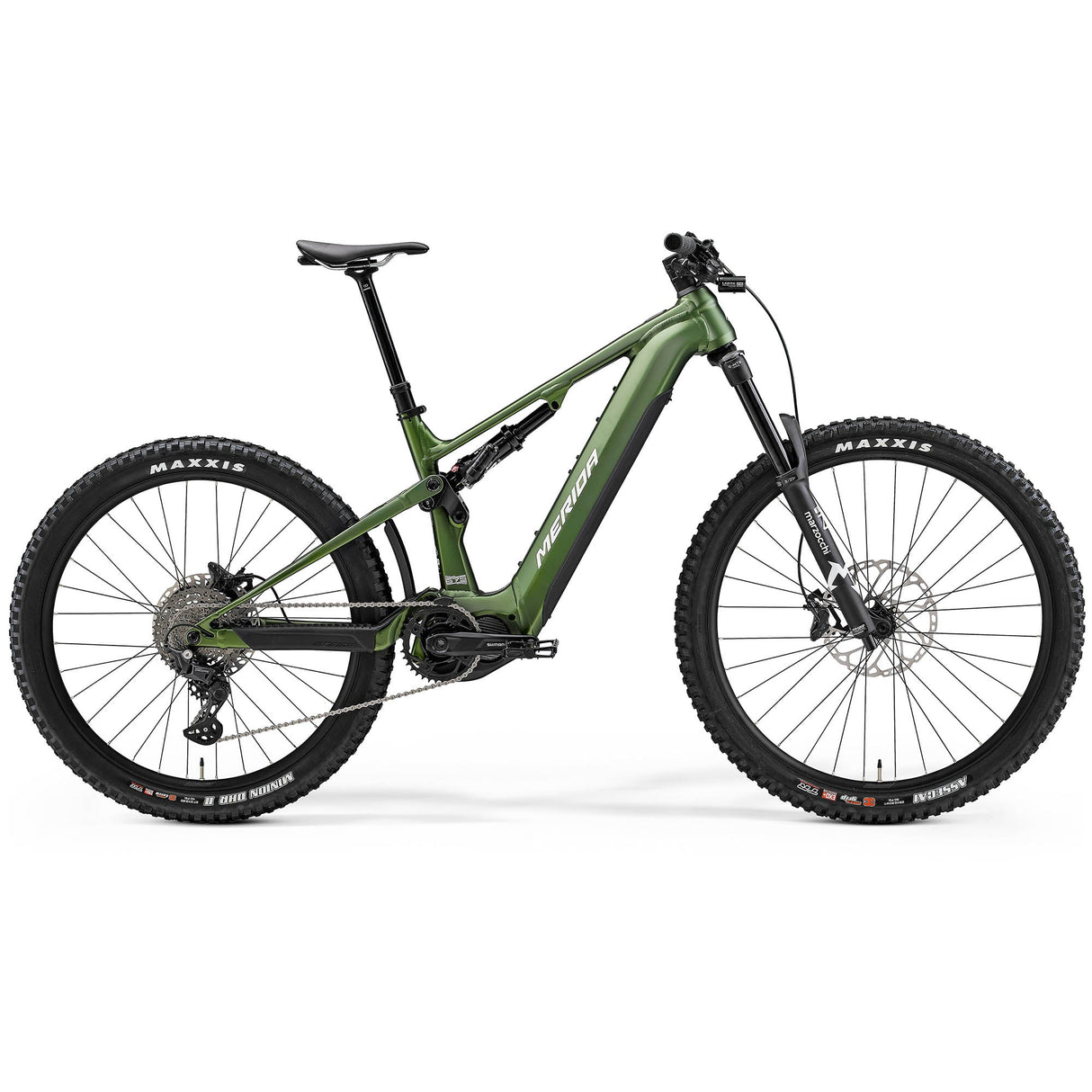

Merida eOne-Sixty 675 Electric Mountain Bike
Merida eOne-Sixty 675 Electric Mountain Bike - S is backordered and will ship as soon as it is back in stock.
Credit subject to status and minimum order value.
Check your eligibility
Fast check - won't affect your credit rating.
Couldn't load pickup availability

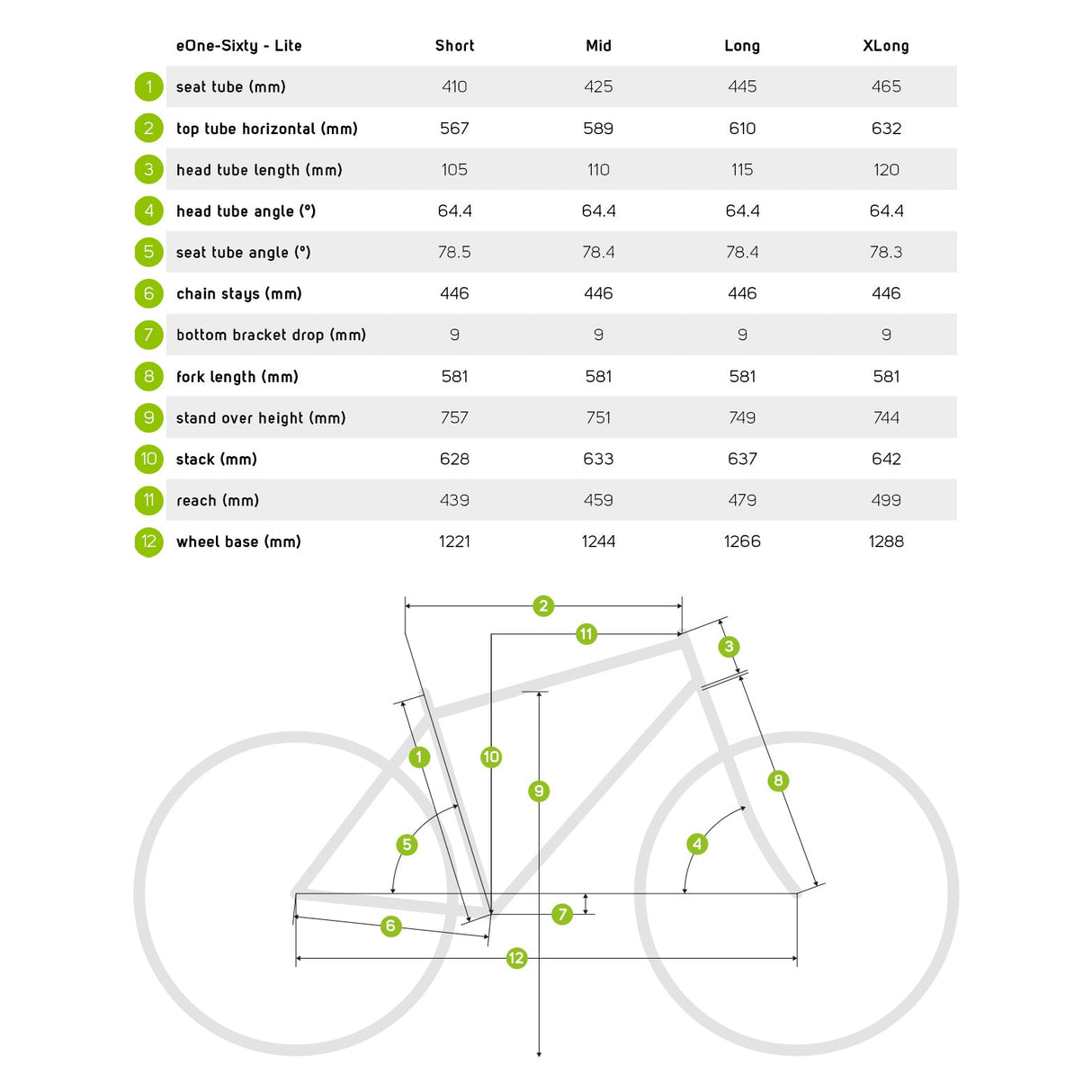

Size Guide
Size Guide
| Size | Frame Size |
|---|---|
| S | 41cm |
| M | 42.5cm |
| L | 44.5cm |
| XL | 46.5cm |
Delivery and Shipping
Delivery and Shipping
After we’ve got your order, a trained mechanic will build your brand new bike and carry out the necessary PDI safety checks. So your bike can fit in the box, we’ll loosen the handlebars and turn them to one side. We will deliver your bike to your home (you’ll get a tracking number to keep an eye on your bike’s journey). When your bike arrives, all you need to do is attach the ancillary items (such as pedals and baskets) and turn and tighten the handlebars. Don’t worry, we’ll include instructions for this bit!
Please allow up to 7 working days for your order to be built, safety checked and dispatched. You will receive an email when your bike is on its way, advising a delivery date.
Christmas 2024 Cut-Off Dates:
Last Fedex collection: Friday 20th December (order cutoff 4pm on Thursday 19th)
Key features
Key features
- Frame: Lite IV - Hydroformed 6061 double butted aluminium with integrated battery; Internal cable routing via Smart entry ports; Tapered head tube; 148 x 12mm axle standard; Max. tyre size 29" x 2.6"
- Battery: Simplo Trend Power Internal Battery Gen 2; 750Wh
- Motor: Shimano Steps EP801; 85Nm
- Display: Shimano SC-EM800
- Drivetrain: Mid Drive
- Chainset: FSA 1x steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
- Gears: 10
Additional Information:
- Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
- Wheels: 29" / 27.5" - Merida Expert TR II rims; 28mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5", front hub = Shimano TC500-B; 110 x 15mm; 32 spokes; centerlock, rear hub = Shimano TC600-HM-B; 148 x 12mm; 32 spokes; centerlock with Merida Expert TR axle including removable 6/4mm allen key
- Tyres: Front = Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip. Rear = Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
- Suspension: Rear = Marzocchi Bomber Air; platform, Front = Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
- Brakes: Rear = Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor, Front = Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
- Lights: Front = Lezyne Power STVZO E115, reverse Merida Custom Mount, Rear = Lezyne LED FEMTO USB REAR STVZO
- Pedals: VP Components - VPE-527
- Chain: Shimano LG500
- Power Button: Shimano satellite system on/off; EWSW310
- Rear Derailleur: Shimano XT RDM5130 LinkGlide 10 speed
- Warranty: Lifetime frame. All other Merida branded components, including paint and finish, are guaranteed for 1 year from date of purchase. Conditions apply*
- *Warranties and service for all other branded original components, such as Shimano, is subject to the terms and conditions of the appropriate component manufacturer.
