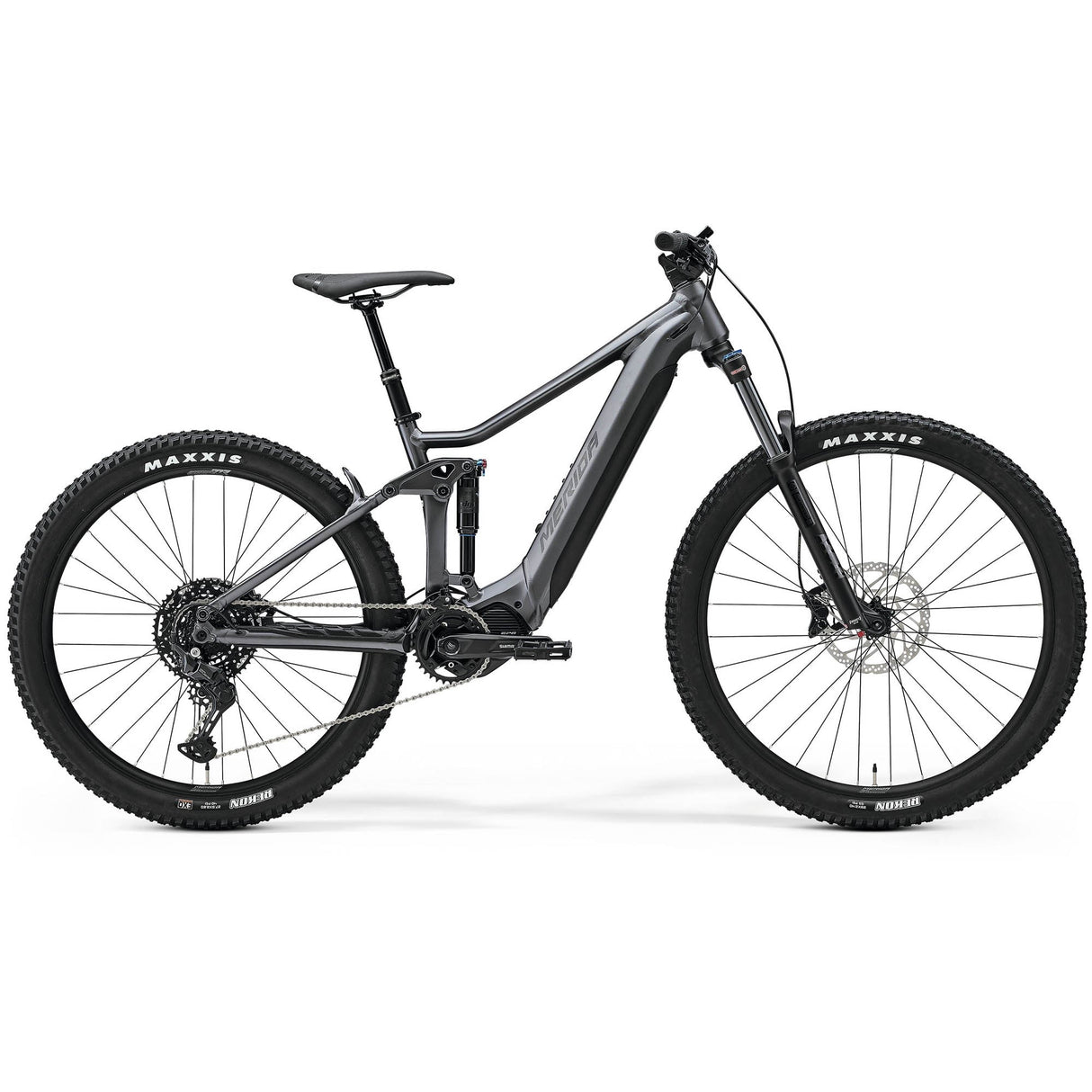

Merida eOne-Forty 400 SE Electric Mountain Bike

• Frame: Lite III - Hydroformed 6061 Double butted aluminium with integrated battery; Internal cable routing via Smart entry ports; Tapered head tube, 148 x 12mm axle standard; Max. tyre size 27.5" x 2.8"
• Battery: Shimano EN806; 630Wh internal battery
• Motor: Shimano Steps EP6; 85Nm
• Display: Shimano SC-EN600
• Drivetrain: Mid drive
• Chainset: Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
• Gears: 10

Additional Information:

• Seat Post: Merida Comp TR; 30.9mm diameter; in-line; M 100mm - L/XL 125mm - XXL 150mm seat post travel
• Wheel: Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); Front hub = Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock; Rear hub = Shimano TC500-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
• Tyres: Front = Maxxis Rekon; 29" x 2.4"; wire bead; dual; Rear = Maxxis Rekon; 27.5" x 2.6"; wire bead; EXO
• Suspension: Front = Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"; Rear = SR Suntour RS21 Edge Plus 2CR -M6; lockout
• Brake: Front = Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RT30 203 mm rotor; Rear = Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
• Lights: Front = CG-119PG; Rear = CG-404RG
• Pedal: VP Components - VPE-537
• Chain: Shimano LG500
• Power Button: CAP-045, Merida Power Button
• Rear Derailleur: Shimano CUES U6000; GS
• Warranty: Lifetime frame. All other Merida branded components, including paint and finish, are guaranteed for 1 year from date of purchase. Conditions apply*
• *Warranties and service for all other branded original components, such as Shimano, is subject to the terms and conditions of the appropriate component manufacturer.

The Merida eOne-Forty 400 SE Electric Mountain Bike is the Merida entry point into full suspension ebiking. With a lightweight aluminium frame, a 630Wh battery and an 85Nm Shimano EP6 motor this ebike shares exactly the same frame and design features as the top of the line eOne-Sixty, but has different ride characteristics making it more agile and well suited to steep climbs. The mixed wheel size set up and front and rear suspension deliver accurate steering, smooth transitions over obstacles and superb traction to produce a well-rounded and versatile bike good for all day riding.
